Our stages are durable, weatherproof, and highly versatile.
Perfect for everything from community gatherings to large-scale concert tours.As mobile units, they can be deployed across New Zealand, ensuring flexibility for any location. Designed for efficiency, they allow for quick setup and pack-down, making them ideal for fast turnarounds.

• TS15
• TS22
• TS33
• TS40

• Contact Us

• Chevron Down

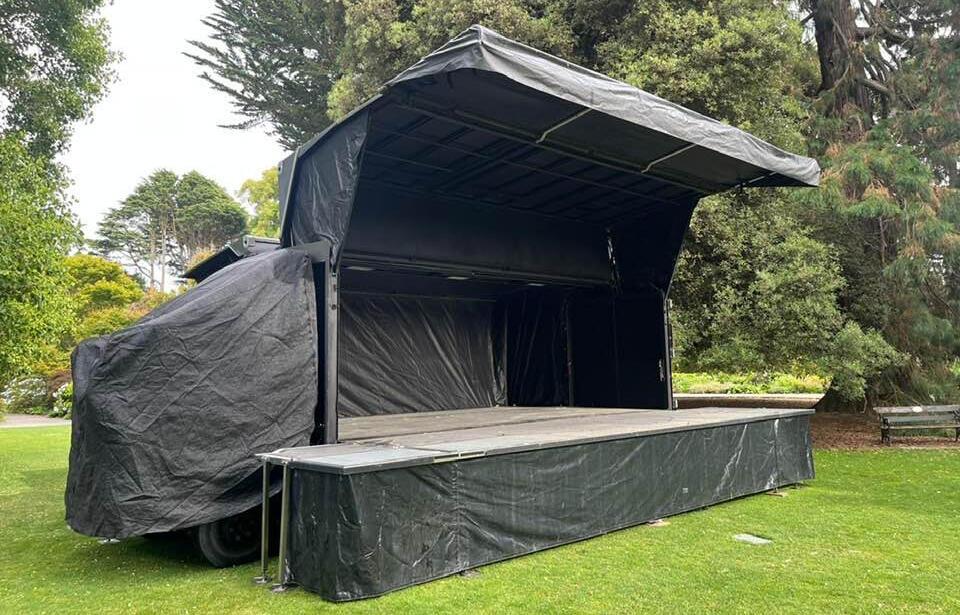

Our Most Compact

TS15

Our most compact trailer stage is perfect for intimate gatherings and smaller events

TS15 Specifications:Stage Area: 5m x 5.7m with a stage height of 0.95m
Roof: 6m x 6.5m aluminum frame (48mm tubing), 4m clearance, black flame-retardant PVC cover
Features: Integrated lighting grid, black PVC walls with three door provisions
Access: Single stair set (front or rear placement)

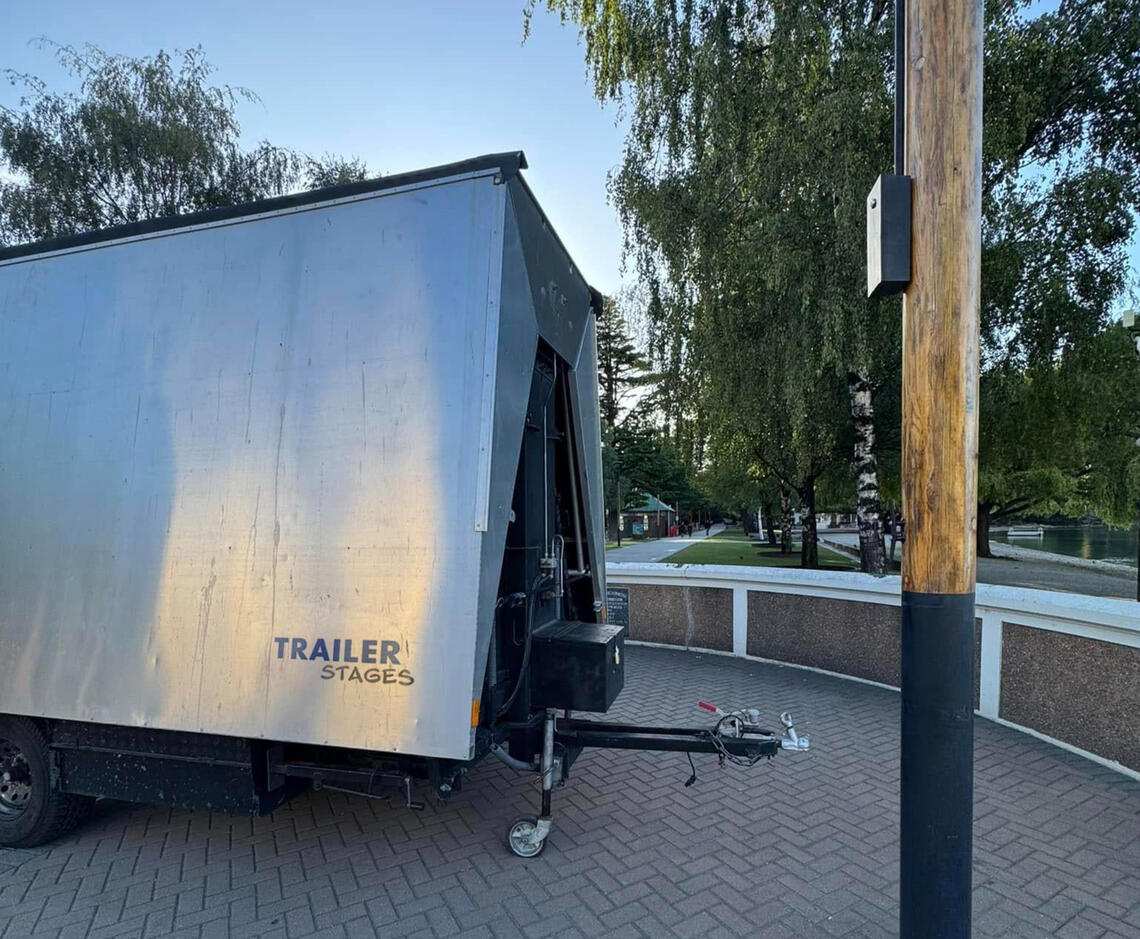

Transport: Trailer towed by 4x4 or truck (on road width 2.23m)
Setup time: Approx 2 hours

• Request Quote

Versatile all in one

TS22

This all-in-one fold-out truck stage offers a fast and efficient setup, making it ideal for small to medium-sized events

TS22 Specifications:Stage Area: 6.5m(w) x 5.7m(d) with a stage height of 1.1m
Roof: 6.5m x 5.7m (extends to 6.5m x 7.2m with nose extension)
Clearance, 3.5m (front), 2.5m (rear), 2.1m center bar
Construction: Metal-clad frame with a 48mm aluminum tube nose, black flame-retardant PVC cover
Access: One stair sets (rear placement)
Transport (Folded): All in one Truck - 9m length (with cab), 3.4m height, 2.1m width, 8 tonnes
Setup time: Approx 2 hours

• Request Quote

Options a plenty

TS33

Versatile all in one truck stage with flown PA positions

TS33 Specifications:Stage Area: 9.0m(w) x 4.8m(d). Plus PA Wings. Stage height 1.2m
Roof: 9.0m x 4.8m with a 0.5m front overhang with a clearance of 3.8m (front), 2.6m (rear) from stage floor
PA System: Ground stack on PA wings or flown via PA trusses (240kg load limit per side)
Walls: Solid back and sides with black theatre drapes upstage
Access: Two stair sets, position adjustable
Additional: 2.4m x 2.4m cowshed
Transport (Folded): All in one truck - 12.0m length, 2.5m width, 3.9m height, 11 tonnes (unloaded)
Setup time: Approx 2 hours

• Request Quote

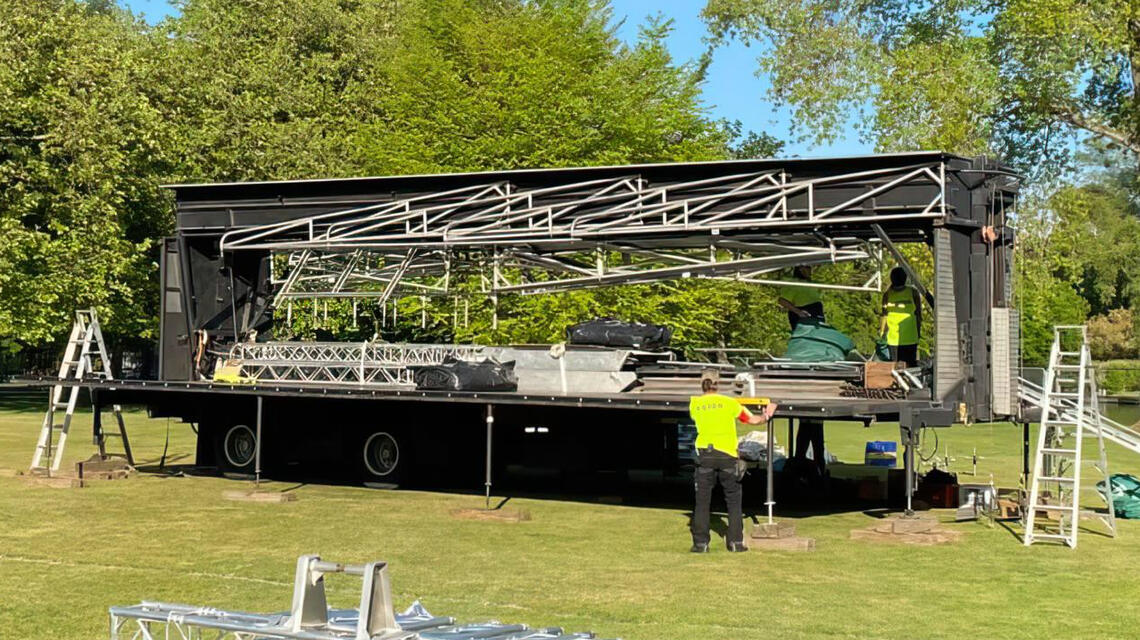

2.5t Roof capacity med scale roof

TS40

Fold out semi trailer offering med/large performance space with good capacity & roof height

TS40 Specifications:Stage Area: 11.6m(w) x 7.8m(d) (extensions available). Height 1.5m (approx.)
Roof Area: 11.6m x 11.6m (front extensions to 17.6m) with 1.9m front and rear overhang. Capacity of 2500kg (evenly loaded)
Clearance: 2.1m for rigging, 5.3m max height from stage floor when raised
PA System: Ground stack on PA wings or flown via PA trusses
Roof & Skins: 48mm aluminium trusses with Flame-retardant PVC tarp frame.
Access: Two 1.2m wide aluminium stair sets
Transport (Folded): 12.0m length, 4.25m height, 2.4m width. Towed by tractor unit - 13.3 tonnes (unloaded)
Setup time: Approx 4 hours.
